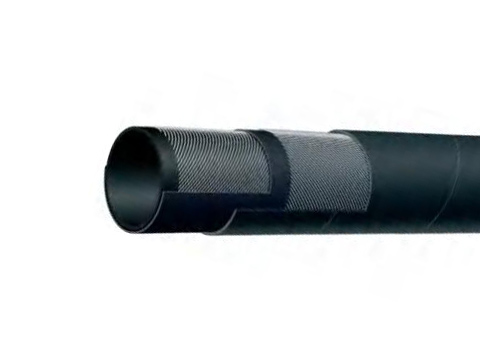

150PSI 2-Ply Abrasive Material Blast Hose

150PSI 2-Ply Abrasive Material Blast Hose

LT1301

Application:Designed to transport abrasive, sandblast, mud, sand, cement, gravel, etc

Inner Tube:Black NR conductive rubber-provides excellent abrasion resistance

Reinforcement:High tensile textile coreds-2-ply construction

Outer Layer:Black SBR/NR blend-abrasion and ozone resistant -pin pricked

Working Pressure:10Bar

Temperature Range:-30℃(-22°F)~+80℃(+176°F)

Specifications
Series ID(in.) ID(mm) OD(in.) OD(mm) Wall Thickness(mm) MaxRec.WP(PSI) Weight(kg/m)
LT1301-050 1/2 13 1.06 27 0.212 150 0.51
LT1301-125 11/4 32 1.89 48 0.240 150 1.15


Note: errors should be based on RMA-Class 311-A standard

Blasting Data Guide

Use the appropriate nozzle size for the appropriate hose diameter to prevent premature hose wear.

 Blasting Data Guide
Series UB8 UB7 UB6 UB5 UB4
NOZZLE SIZE 1/2 7/16 3/8 5/16 1/4
CFM @ 100PSI 350 260 200 150 90
AIR HOSE 2 1 1/2 1 1/2 1 1/4 1 1/4
S.B.HOSE SIZE 11/2 1 1/2 1 1/4 1 1/4 1
MAT.LB/HR 2250 1750 1260 900 540
